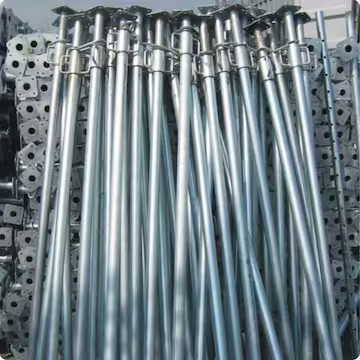

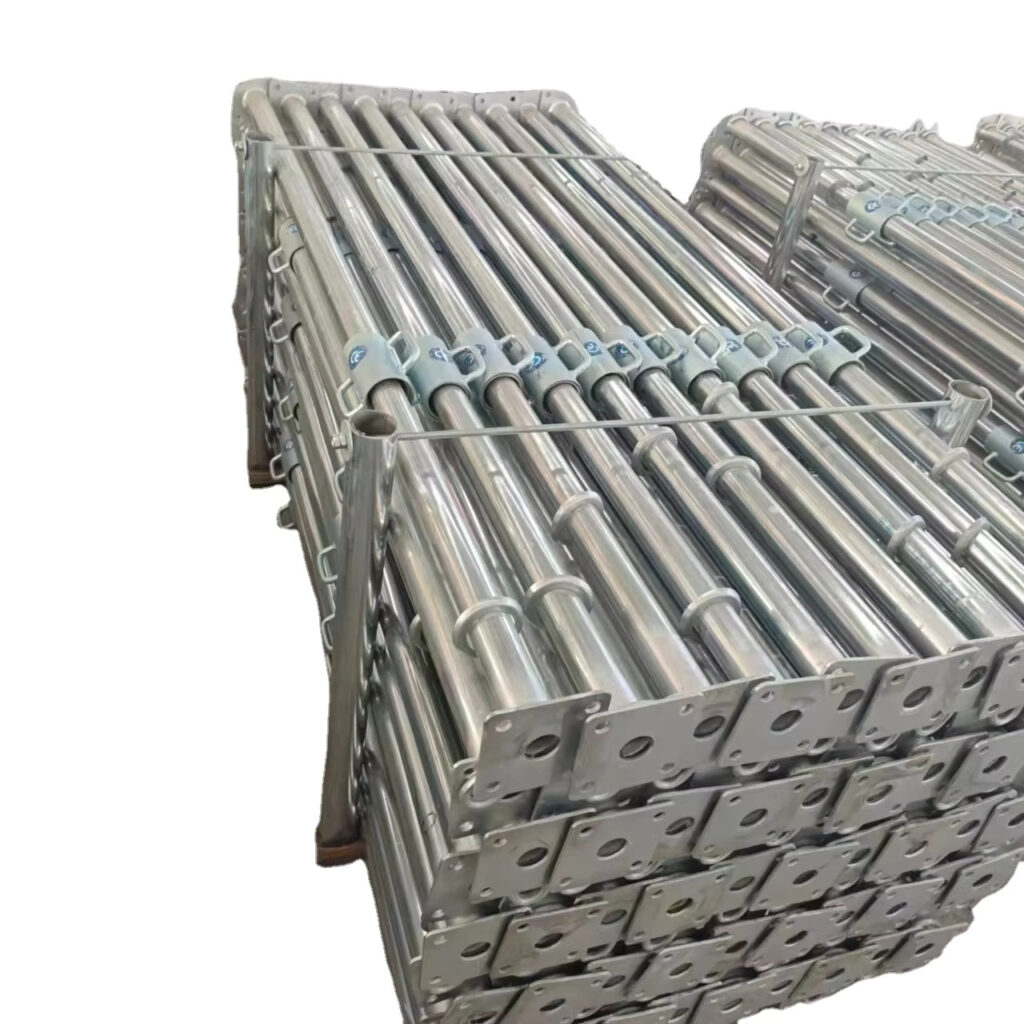

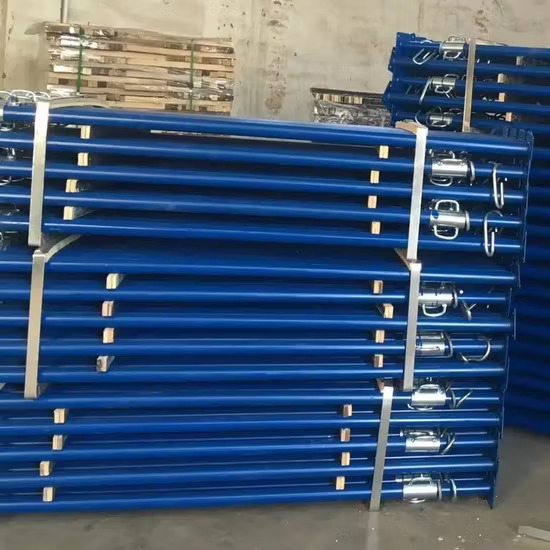

Adjustable Telescopic Prop
ADJUSTABLE TELESCOPIC PROP
ADJUSTABLE
TELESCOPIC PROP
popular method of support in the
building industry
today. Ideally suited
to all kinds of
building
construction and repair.
Key Features:
- Completely adjustable for height.
- Extremely robust, easy to handle, compact to store.
- Quickly and simply erected.
- No loose parts, no tools necessary.
- Head plates suit modern framework systems for slab construction.
- Sizes OM to 4M confirms fully to BS 4047: 1966.
A threaded external tube in combination with an internal tube with intermediate holes gives the desirable extended size within the maximum and minimum extended range of the prop. It’s a self-leaning stub on the collar nut, when rotated automatically cleans the threads of dirt, cement and other foreign substances that hamper quick and easy adjustment. Simple insertion of a rod in the holed base on the collar nut facilitates turning of the collar nut in confined spaces.
Compatible holes on base plates and head plates of 150 x 150 mm help double staging when required. Beam head version comprising of 300 x 100 mm head plate is also available for wider support. Stir-up heads snugly fit into either plate without any additional fastening.
PRODUCT SPECIFICATION
- Outer: 60.3 mm O.D.,3.8 mm Wall Thickness
- Inner: 48.3 mm O.D.,3.15 mm Wall Thickness
